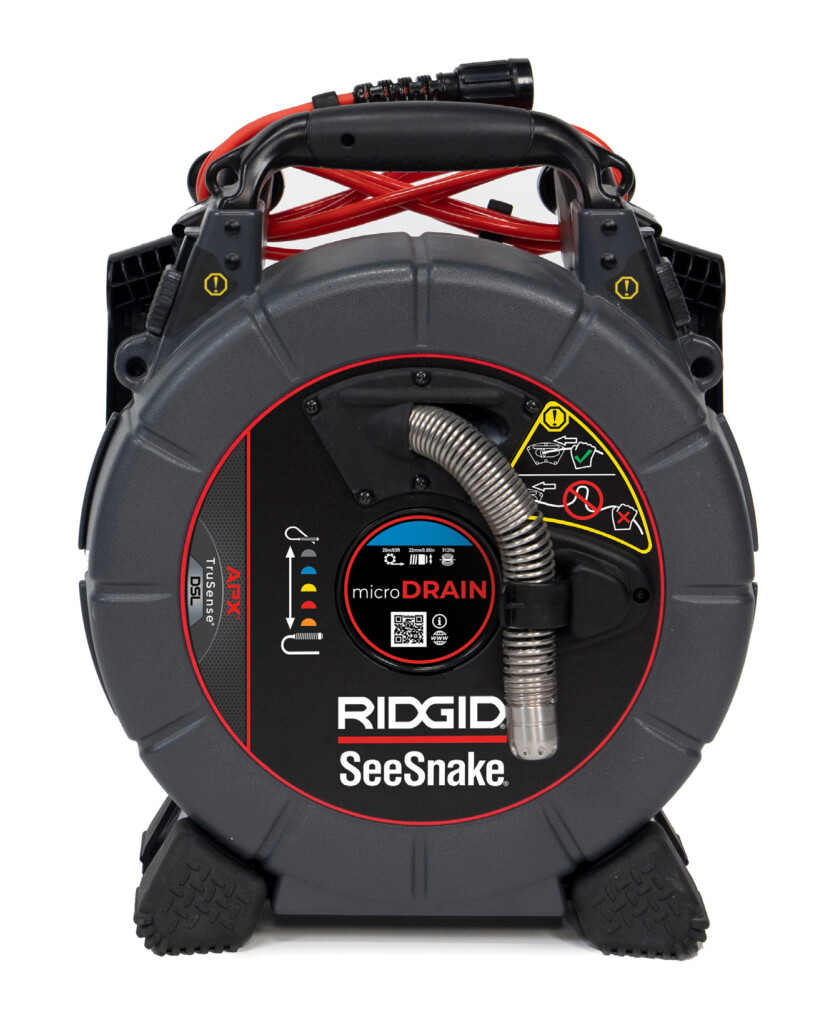

SeeSnake® microDRAIN™ APX® DSL Support
The SeeSnake® microDRAIN™ APX® DSL with TruSense® is the ideal pipe inspection camera for small pipes and conduits with tight turns. The advanced, high-flexibility push cable and small-radius DSL camera design allows inspection through small-diameter pipes, p-traps, and small-radius bends that other inspection systems often cannot inspect.
- The digital self-leveling camera head is our most durable camera, continuously leveling the in-pipe image without moving parts
- TruSense® Technology offers High Dynamic Range (HDR) imaging with the clearest in-pipe image and the TiltSense™ inclinometer, which displays the camera’s degree of tilt on the monitor
- Specialty high-flex push cable and small diameter camera head are ideal for p-traps and toilet traps
- Built-in kickstand offers in-field versatility with multiple configurations for optimal operation
Must be used with a TruSense-enabled monitor to receive features: SeeSnake CS65XR, CS12x, CS6x Versa, and the CSx Via.
TruSense® Technology
TruSense technology establishes a two-way communication link between the camera head and a connected SeeSnake CS65xr, CS6x Versa, CS12x, or CSx Via. With TruSense, advanced sensors on the camera head convey valuable information about the in-pipe environment.
TruSense Highlight Video
Specifications
| Specification | Value |
|---|---|
| Camera Diameter | 22 mm (0.87 in) |
| Camera Type | Digital Self-Leveling |
| Line Capacity | 1.25 in to 3 in (32 mm to 76 mm) |
| Push Cable Length | 65 ft (20 m) |
| Push Cable Diameter | 0.33 in (8.3 mm) |
| Minimum Bend Radius | 0.75 in (19.1 mm) |
| Weight | 11.6 lb (5.25 kg) |
| Length | 13.3 in (337 mm) |
| Width | 8.8 in (224 mm) |
| Height | 16.2 in (411 mm) |
| Drum Diameter | 12 in (305 mm) |
| Sonde | 512 Hz, integrated |
